FSI-LES – turbulent FSI-Benchmark
- 2D-deformation of a thick plate in a turbulent flow behind a rigid cylinder at Re=10,000
- extension of the FSI-benchmark FSI3 (Hron and Turek) to turbulent flows.

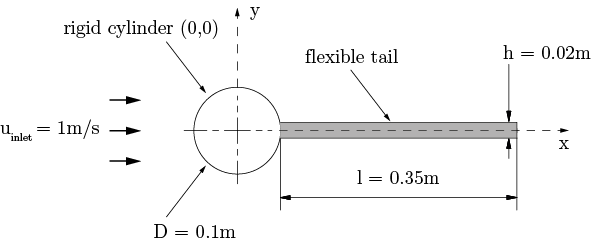

geometry
material properties
- fluid: temperature: 20°C, density: 1000 kg/m³,dynamic viscosity: 10^-3 kg/m s
- structure: density: 1000 kg/m³, Young’s modulus: 5.6 MPa, Poisson’s ratio: 0.4
references
- Breuer, M., De Nayer, G., Münsch, M., Gallinger, T., Wüchner, R., 2012. Fluid-structure interaction using a partitioned semi-implicit predictor-corrector coupling scheme for the application of large-eddy simulation. Journal of Fluids and Structures 29, 107–130.
available data
- please contact [email protected] for data download

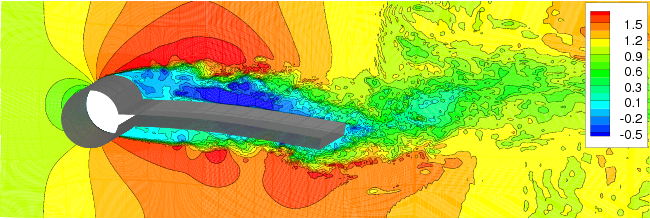

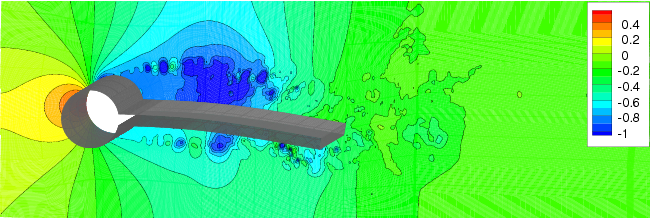

movies
Letzte Änderung: 5. Januar 2018
